Automatic Precision Seeder
JFT-JB1000 Intelligent Precision Seeding Machine for Commercial Nurseries
An automated plug-tray seeding system designed for continuous seedling production, integrating seed handling and precision seeding into a streamlined nursery workflow.
> 1,000+ trays/hour
Production Capacity
≥ 98%
Sowing Accuracy
Motor-driven
Power Type
0.4~0.8 MPa
Air Source Pressure
Send us your tray format, seed type and target production capacity to evaluate the suitable configuration.
Watch the JFT-JB1000 in operation and see how the equipment fits into a commercial nursery seeding workflow.
Precision Seeding for Commercial Nursery Production
Manual seeding becomes difficult to scale when nursery orders increase and trays must be processed continuously. Relying on manual labor can lead to inconsistent sowing speeds and varied precision across different operators.
The JFT-JB1000 is designed to integrate seed handling and precision plug-tray seeding into a continuous equipment workflow with AI. For commercial nurseries, this allows the seeding stage to be organized around a defined machine capacity instead of relying entirely on manual tray-by-tray operation.
Continuous Tray Processing
Maintain steady throughput for high-volume plug-tray production.
Precision Seeding
Ensure consistent seed placement and minimize vacancy rates.
Production Line Integration
Easily connects with downstream equipment for seamless automation.
Reduced Manual Handling
Lower dependency on manual labor for repetitive sowing tasks.
Typical Nursery Workflow
Machine Features & Working Process
How does the Automatic Precision Seeder work? The JFT-JB1000 is configured according to the machine setup to automate the critical steps of plug-tray sowing.
Continuous Seeding Workflow
Seed & Material Preparation
Loading pelleted seeds and configuring the machine settings for the specific tray format.
Tray Feeding
Empty plug trays are continuously fed into the production line.
Seed Placement
The automatic air suction roller system picks up seeds accurately from the hopper.
Precision Seeding
Seeds are deposited into the tray cells with high accuracy, achieving ≥98% sowing accuracy for pelleted seeds.
Continuous Tray Transfer
Processed trays move continuously along the conveyor without manual interruption.
Output to the Next Nursery Stage
Trays are ready for covering, watering, and transfer to the greenhouse propagation area.
Best suited for:

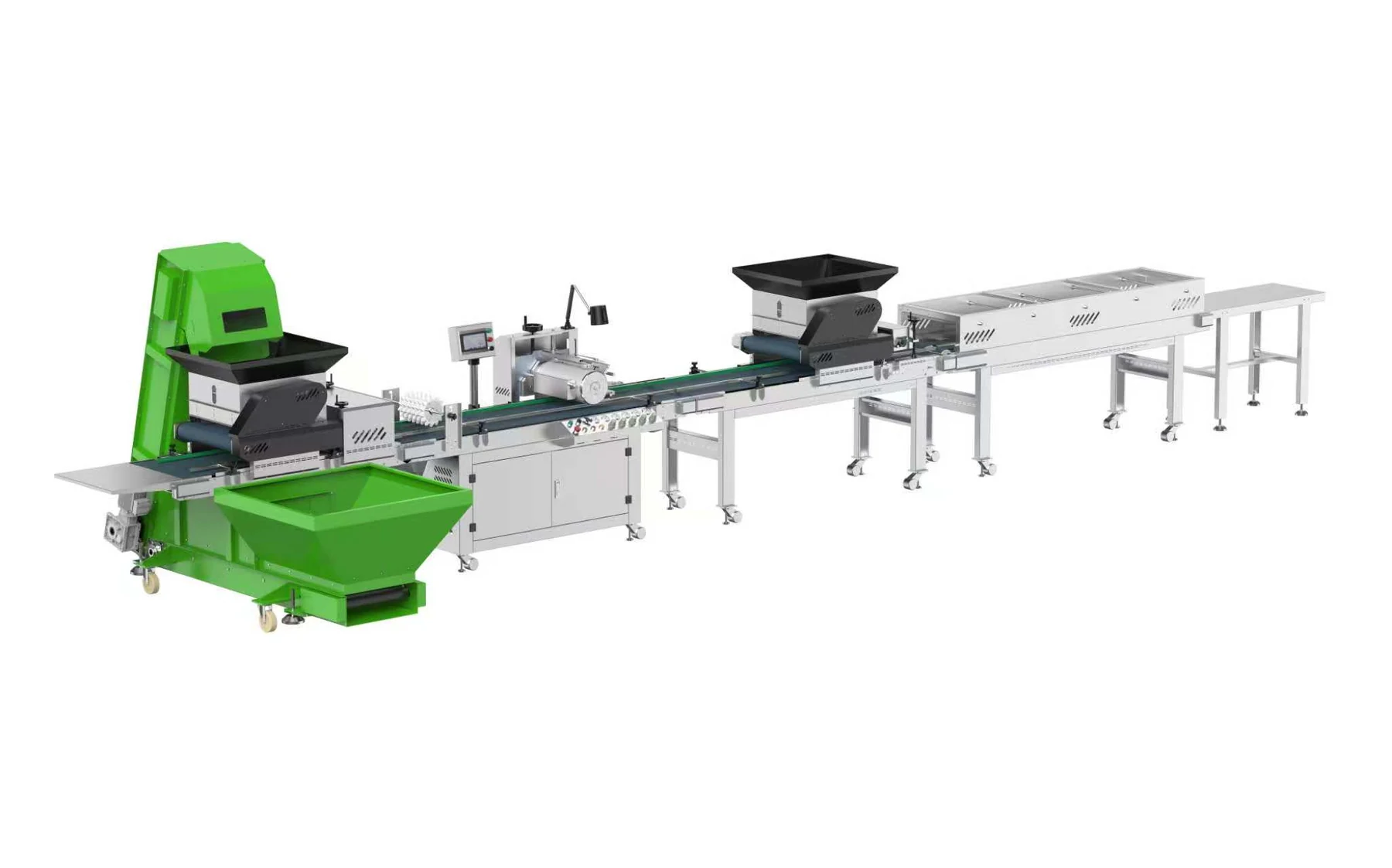

JFT-JB1000 Technical Specifications
Detailed parameters for the automatic precision seeding machine. Production capacity and configuration depend on actual tray formats and seed characteristics.
Performance & Dimensions
| Model | JFT-JB1000 |
| Seeder type | Automatic air suction roller type |
| Overall dimensions (L×W×H) | 10200 × 2400 × 2000 mm |
| Overall weight | 1600 kg |
| Supporting power type | Motor-driven |
| Air source pressure | 0.4 ~ 0.8 MPa |
Seeding Capabilities
| Hourly production rate | ≥ 1000 trays/h |
| Sowing accuracy (pelleted seeds) | ≥ 98% |
| Vacancy rate | ≤ 1% |
| Seed breakage rate | ≤ 0.1% |
| Applicable seeding tray (W×H) | Width < 400 mm, Height < 100 mm |
| Paving thickness | 20 ~ 120 mm |
| Thickness of covering soil | 10 ~ 20 mm |
Project Evaluation Notice
Machine configuration should be evaluated according to tray format, seed characteristics, nursery workflow and required production capacity.
Built Around Your Nursery Workflow
Different nurseries operate with different tray formats, seed varieties, production volumes and downstream processes. Before selecting an automatic precision seeder, the equipment configuration should be evaluated against the actual production workflow.
Commercial Vegetable Nurseries
Greenhouse Seedling Production
Plug-Tray Production
Integrated Nursery Automation
Send us your tray dimensions and target capacity. Our technical team can review the application requirements.
Contact AiGRAFT
Project Requirements
Please provide details about your nursery production to help us evaluate the suitable machine configuration.
