Seedling Selection Replenishment Machine
Designed for automated nursery operations where empty cells, missing seedlings, and weak seedlings need to be identified and replenished efficiently. Utilizing advanced machine vision, the JFT-F1000XA streamlines seedling inspection and tray automation.
Why Automate Seedling Selection and Replenishment?

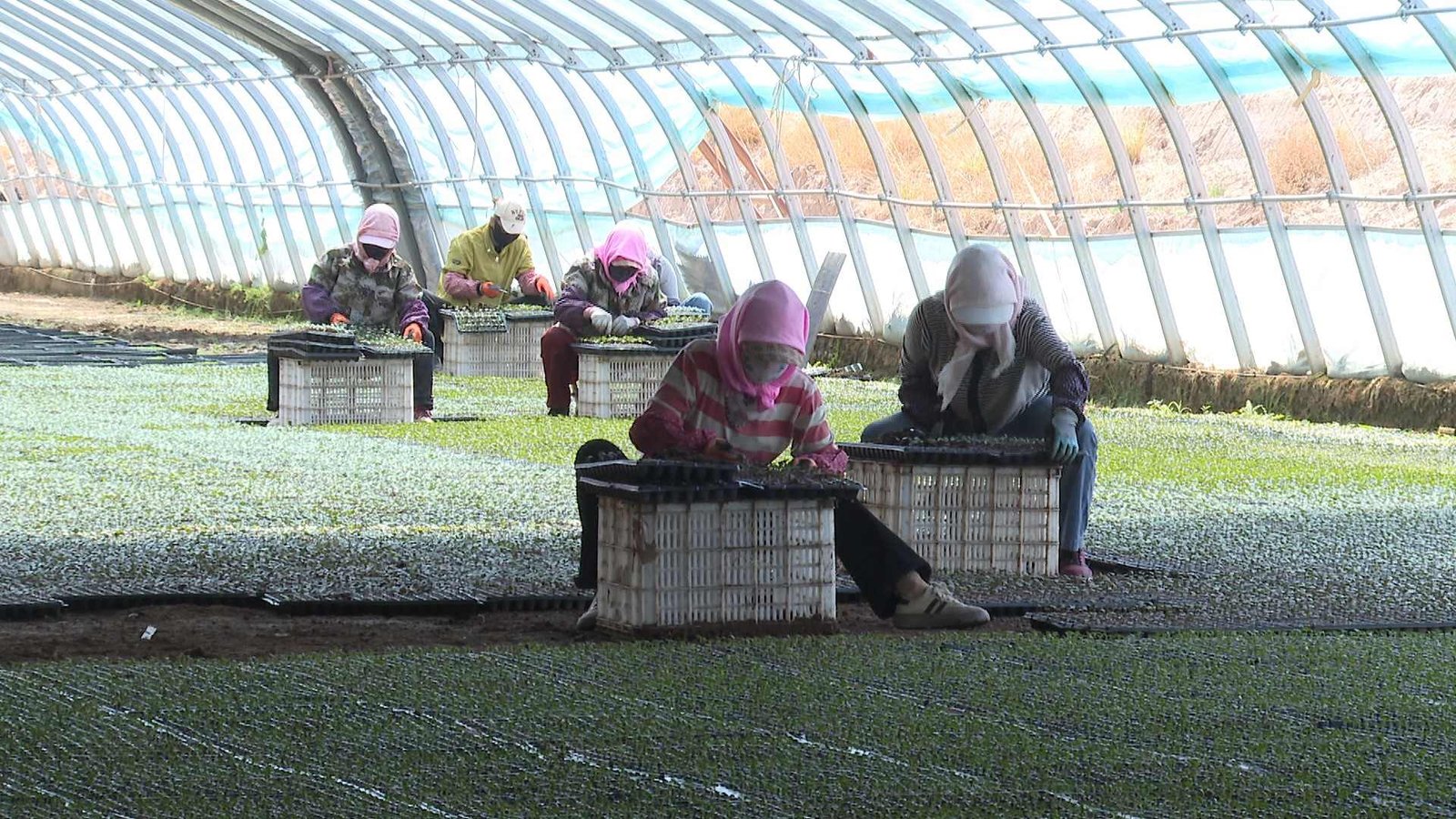

Manual inspection of plug trays requires continuous visual judgment and repetitive extraction. As commercial nursery production scales, addressing tray inconsistencies automatically becomes critical for maintaining throughput.

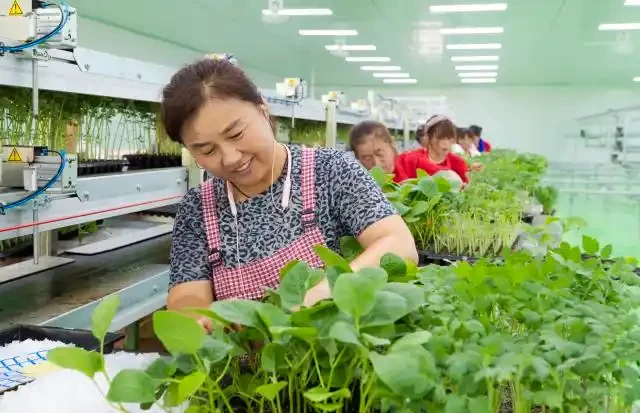

Before: Manual inspection limits production scaling and consistency.
Empty Cells & Seed Leakage
Seedling trays often contain empty holes due to germination failure or seeder misses.
Automated Solution: Visual identification → automatic replenishment → ensures consistent tray utilization.
Weak & Substandard Seedlings
Uneven seedling quality impacts downstream transplanting and final crop yield.
Automated Solution: Machine vision screening → mechanical removal → reduces manual inspection work.
Repetitive Manual Replenishment
Manually picking suitable seedlings to fill empty spots is slow and labor-intensive.
Automated Solution: Precise mechanical extraction → target position placement → supports high-volume nursery automation.
Operational Workflow & Technology
The system integrates high-resolution depth cameras with advanced object detection algorithms to automate the entire tray inspection and correction process.
High-Speed Imaging
Depth camera captures detailed tray surface data in real-time.
Visual Recognition
YOLOv8 object detection identifies empty cells and weak seedlings.
Seedling Selection
System calculates dynamic path planning for optimal extraction.

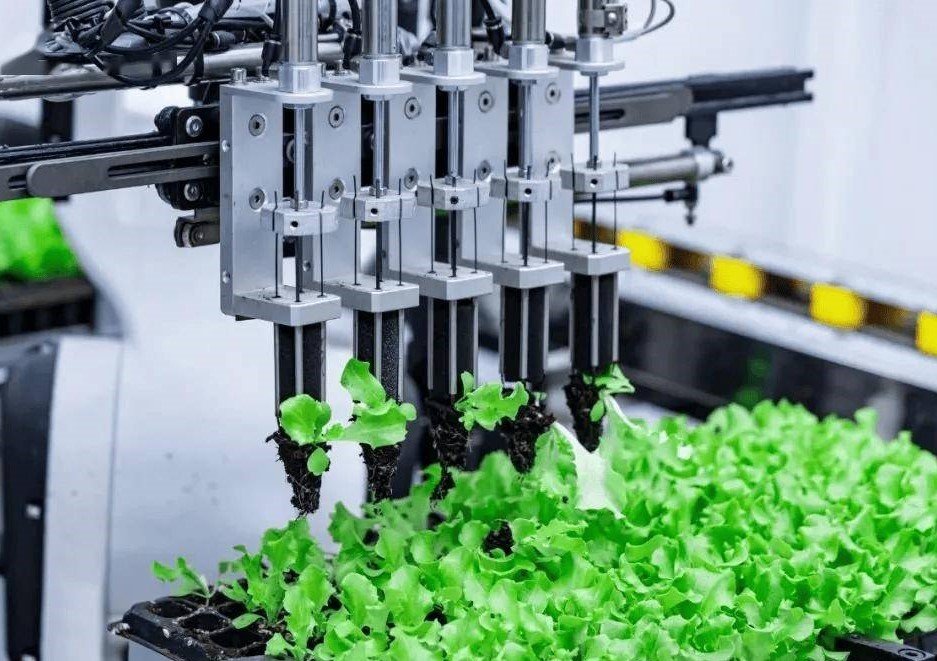

Precise Extraction
Flexible gripping mechanisms remove targets without damaging roots.
Automatic Replenishment
Visual closed-loop control dynamically corrects positioning deviations.
Intelligent Control & Self-Checking
- YOLOv8 Object Detection: Ensures high-speed, accurate identification under varying greenhouse lighting conditions.
- Visual Closed-Loop Control: Continuously monitors gripper position relative to the tray cell for precision placement.
- Fault Self-Checking: Built-in operational accuracy self-feedback mechanisms to minimize downtime.
JFT-F1000XA Features & Specifications
Engineered for high-throughput commercial nurseries requiring reliable automated seedling replenishment.
Watch the machine identify, select and replenish seedlings during the nursery operation.
High-Speed Imaging
Visual recognition for accurate seedling and tray condition detection.
Flexible Clamping
Configurable gripping mechanisms for different seedling and tray requirements.
Intelligent Screening
Rapid identification and extraction of target seedlings from source trays.
Precision Replenishment
Accurate placement of selected seedlings into target positions.
Technical Specifications
| Model | JFT-F1000XA |
|---|---|
| Efficiency / Capacity | 300 trays/hour (approx. 23,000–36,000 plants/hour) |
| Recognition Rate | ≥ 99% |
| Elimination Rate | ≥ 98% |
| Success Rate | ≥ 98% |
| Dimensions (L*W*H) | 3000 * 2130 * 1750 mm |
| Weight | 1000 KG |
| Rated Power | 2.8 kW |
| Air Consumption | ≤ 200 L/min |
| Air Supply Pressure | 0.4 ~ 0.6 MPa |
| Gripping Configuration | Different seedling selection and replenishment claws can be configured according to requirements. |
* Configuration can be discussed according to seedling type, tray specification and production requirements.
Applications & Procurement Scenarios
When nursery operators handle large volumes of plug trays, manual inspection and replenishment can become a bottleneck. The JFT-F1000XA supports automated tray preparation across various agricultural environments.
Commercial Nurseries
Process thousands of trays daily with consistent quality control. Automating selection reduces dependency on temporary seasonal labor.
Greenhouse Production
Maximize greenhouse bench space utilization by ensuring every tray sent to the growing area is fully populated with viable seedlings.
Automated Production Lines
Integrates seamlessly into existing tray handling systems, working alongside seeders and transplanting robots for complete automation.
Need a Seedling Selection Replenishment Machine?
Tell us about your seedling type, tray format, and production requirements. Our team can review the application and recommend a suitable configuration of the JFT-F1000XA.
